1.27mm Pitch 100 Pin J30J Micro D Connector with Metal Body for High-Density Applications

Brand Name : ZSX

Model Number : J30J-100TJL

Certification : ISO9001

Place of Origin : China

MOQ : 50

Price : Depending on the quantity

Payment Terms : T/T,D/P,Western Union

Supply Ability : 1000000Pcs/Year

Delivery Time : 5-8 Days

Packaging Details : Carton packaging

Name : J30J Connector

Gender : Male

Boday Material : Metal

Insulator material : PPS

Working temperature : -55℃~+125℃

Specification : 9~144 pins

Contact Now

1.27mm J30J Connector 100 Pin Micro D Connector 3A J30J-100TJL

The J30J series of micro rectangular electrical connectors comply with GJB2446A (equivalent to MIL-DTL-83513), corresponding to the American MDM series products. These connectors feature precision twisted wire elastic pins with a contact piece spacing of 1.27mm, offering a compact size ideal for high-density applications.

The metal casing is available in 12 specifications ranging from 9 to 144 pins. The insulator material uses PPS to meet high-temperature resistance and aerospace application requirements. Plugs and sockets feature threaded locking, guidance, and misinsertion prevention mechanisms.

Termination forms include crimping, direct insertion, bending insertion, and welding. The crimped wire cross-sectional area ranges from 0.1mm² to 0.15mm², making these connectors suitable for various electronic and electrical systems requiring high density, miniaturization, lightweight construction, and high reliability.

Product Performance Specifications
Product Model J30J-100TJL Contact Resistance ≤10mΩ
Ambient Temperature -55℃~+125℃ Insulation Resistance ≥5000MΩ
Vibration 10Hz~2000Hz 196m/s² Medium Pressure Resistance 800V
Random Vibration Power spectral density 0.4G²/Hz, RMS acceleration 23.1G Mechanical Life 500 cycles
Impact 735m/s² 11ms Rated Current 3A

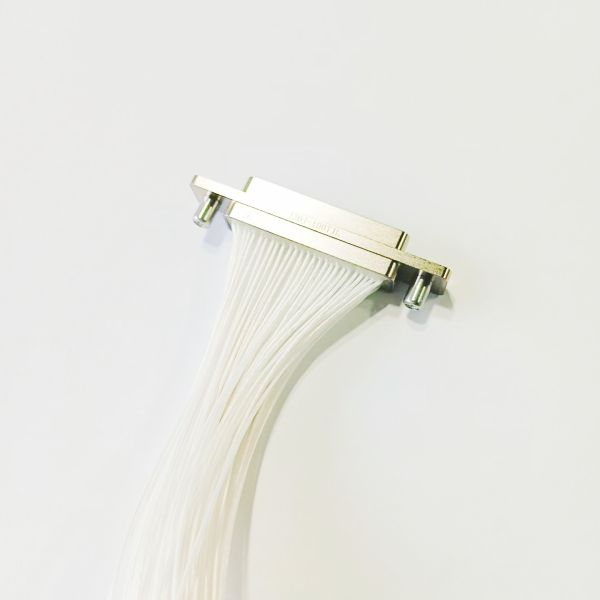

Product Display
1.27mm Pitch 100 Pin J30J Micro D Connector with Metal Body for High-Density Applications
1.27mm Pitch 100 Pin J30J Micro D Connector with Metal Body for High-Density Applications
Product Technical Drawings
1.27mm Pitch 100 Pin J30J Micro D Connector with Metal Body for High-Density Applications
Related Products
1.27mm Pitch 100 Pin J30J Micro D Connector with Metal Body for High-Density Applications
1.27mm Pitch 100 Pin J30J Micro D Connector with Metal Body for High-Density Applications

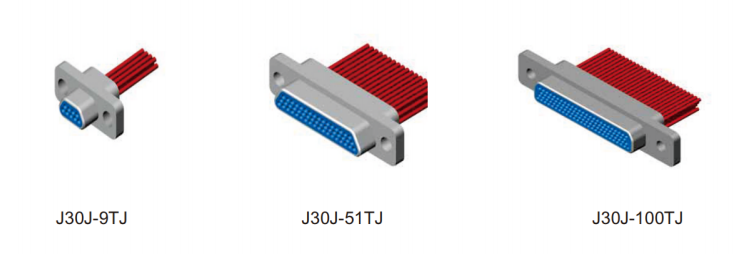

Product Selection Reference
Shell Size Specifications
1.27mm Pitch 100 Pin J30J Micro D Connector with Metal Body for High-Density Applications
1.27mm Pitch 100 Pin J30J Micro D Connector with Metal Body for High-Density Applications

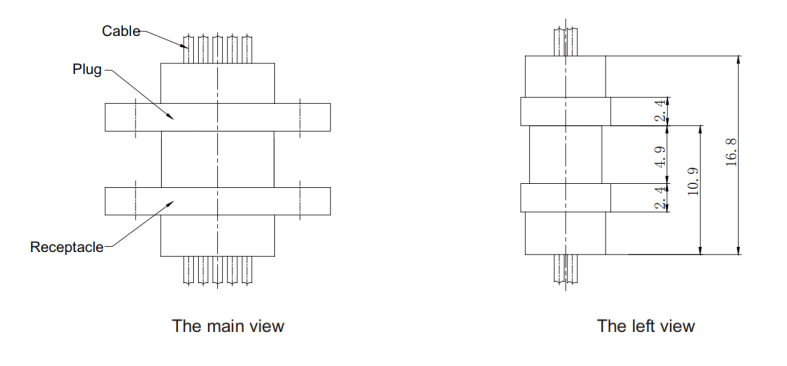

Mated Appearance
1.27mm Pitch 100 Pin J30J Micro D Connector with Metal Body for High-Density Applications
Company Overview
Office Facilities
1.27mm Pitch 100 Pin J30J Micro D Connector with Metal Body for High-Density Applications
1.27mm Pitch 100 Pin J30J Micro D Connector with Metal Body for High-Density Applications
Production Facilities
Machining Production Workshop
1.27mm Pitch 100 Pin J30J Micro D Connector with Metal Body for High-Density Applications
1.27mm Pitch 100 Pin J30J Micro D Connector with Metal Body for High-Density Applications
Precision Assembly Production Workshop
1.27mm Pitch 100 Pin J30J Micro D Connector with Metal Body for High-Density Applications
1.27mm Pitch 100 Pin J30J Micro D Connector with Metal Body for High-Density Applications
Glass-to-Metal Sealed Production Workshop
1.27mm Pitch 100 Pin J30J Micro D Connector with Metal Body for High-Density Applications
1.27mm Pitch 100 Pin J30J Micro D Connector with Metal Body for High-Density Applications
Certifications & Quality
1.27mm Pitch 100 Pin J30J Micro D Connector with Metal Body for High-Density Applications
1.27mm Pitch 100 Pin J30J Micro D Connector with Metal Body for High-Density Applications
Customer Engagement
1.27mm Pitch 100 Pin J30J Micro D Connector with Metal Body for High-Density Applications
1.27mm Pitch 100 Pin J30J Micro D Connector with Metal Body for High-Density Applications
Packaging & Shipping
1.27mm Pitch 100 Pin J30J Micro D Connector with Metal Body for High-Density Applications
1.27mm Pitch 100 Pin J30J Micro D Connector with Metal Body for High-Density Applications
1.27mm Pitch 100 Pin J30J Micro D Connector with Metal Body for High-Density Applications
  • Standard export carton packaging
  • Customized specifications including logo and branding available
  • Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (varies based on quantity and ODM requirements)
Frequently Asked Questions
Are you a trading company or manufacturer?
Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing, and sales experience in Aeronautics and Astronautics and commercial RF microwave transmission components.
What are the main products of your company?
Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors, and other microwave products.
Does your company accept customized products?
We accept ODM (Original Design Manufacturing) services.
Does your company provide free samples?
We support free samples with freight paid on delivery.
What is the minimum order quantity of your company's products?
200 pieces. Pricing is higher for orders under 200 pieces.
Which logistics company does your company ship through?
We cooperate with international logistics companies DHL, UPS, FedEx, TNT year-round to ensure fast delivery with competitive shipping costs. Air and sea freight options are also available.
How long does it usually take to receive the goods?
Generally, 3-8 working days for international express, 5-8 working days for air freight.
What payment methods does your company accept?
We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).
How long is your warranty?
The warranty period is three months.
